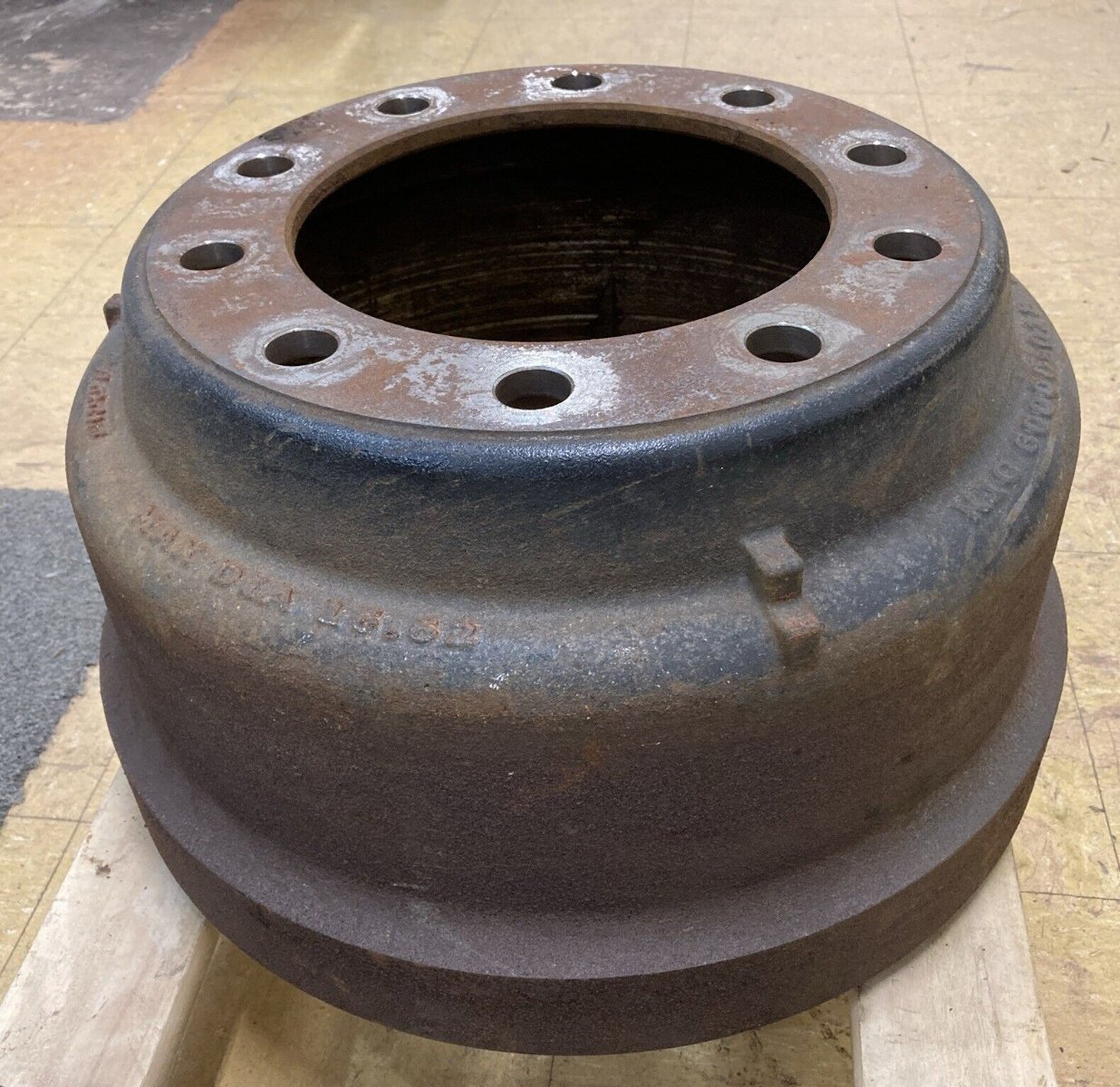

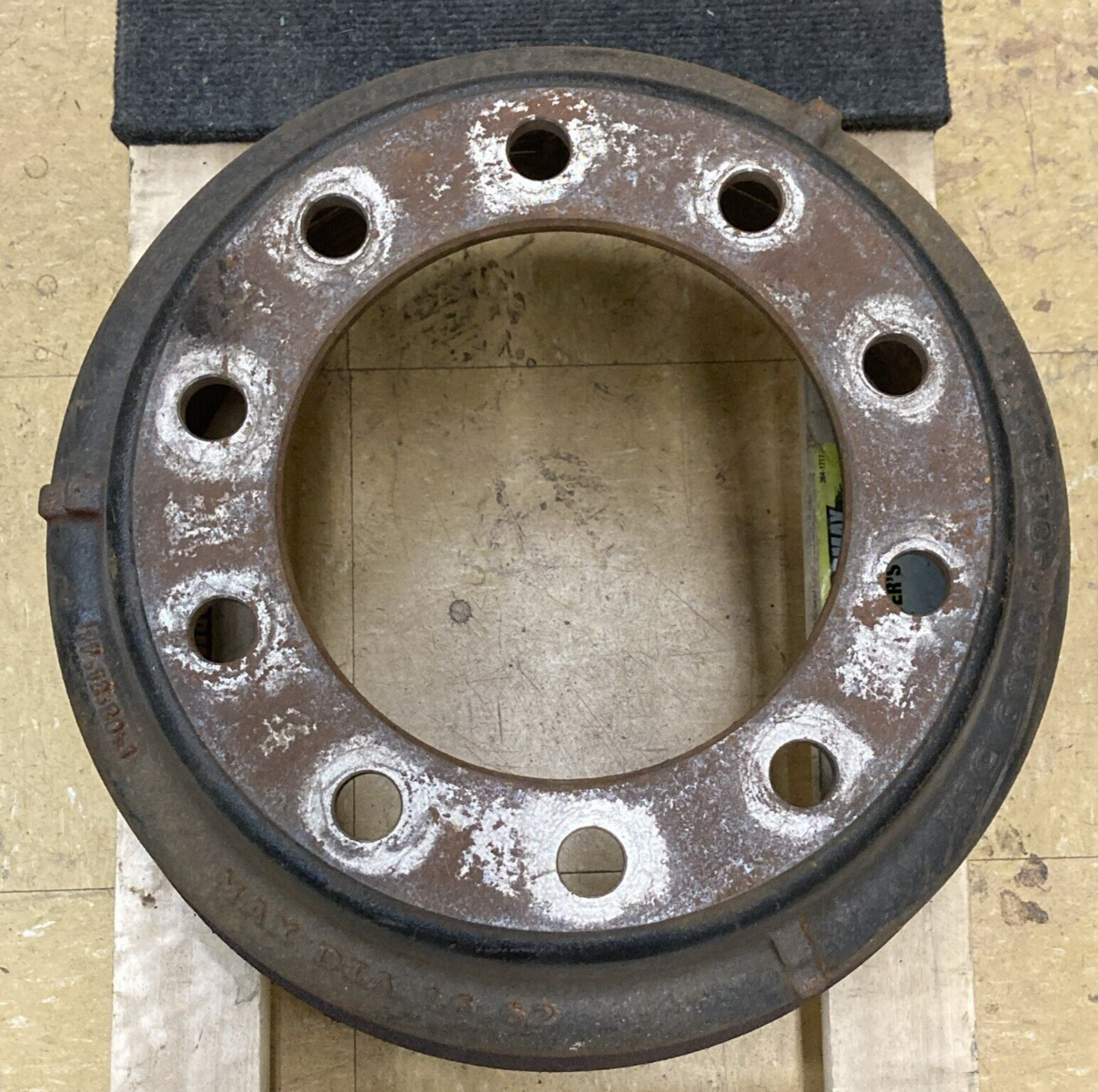

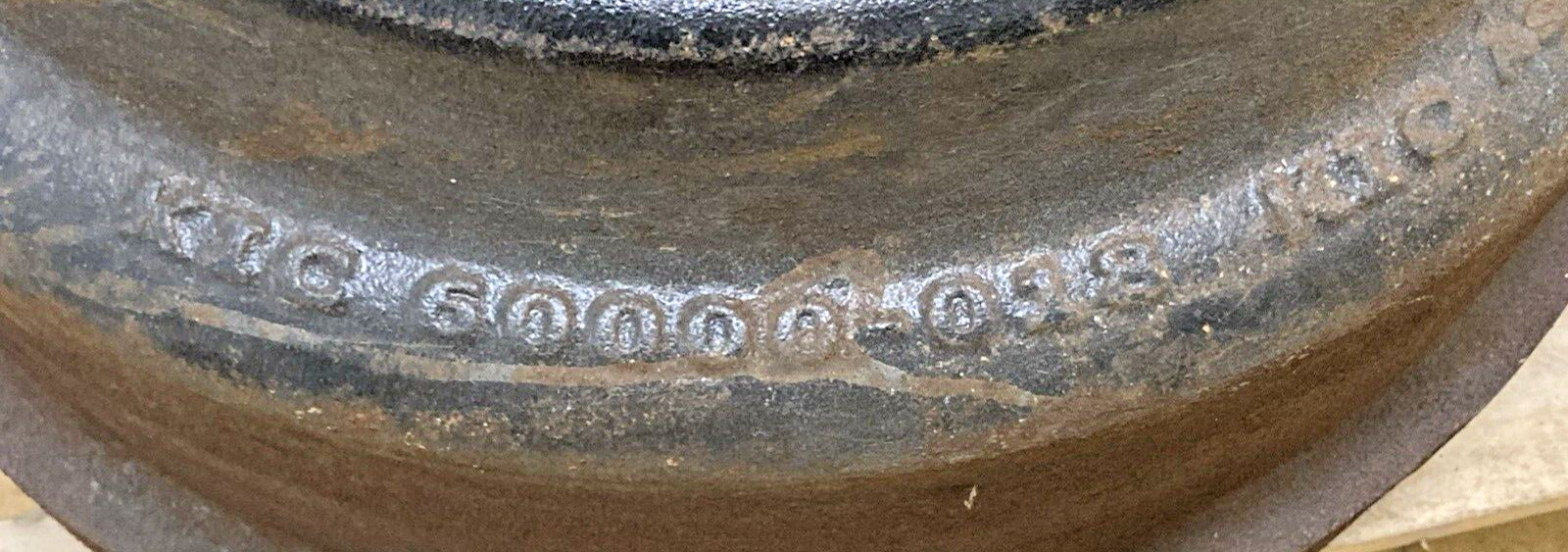

KICast 60000-018 Brake Drum, Cast Iron, Outboard, 16.50x7.00 Bolt Holes 10

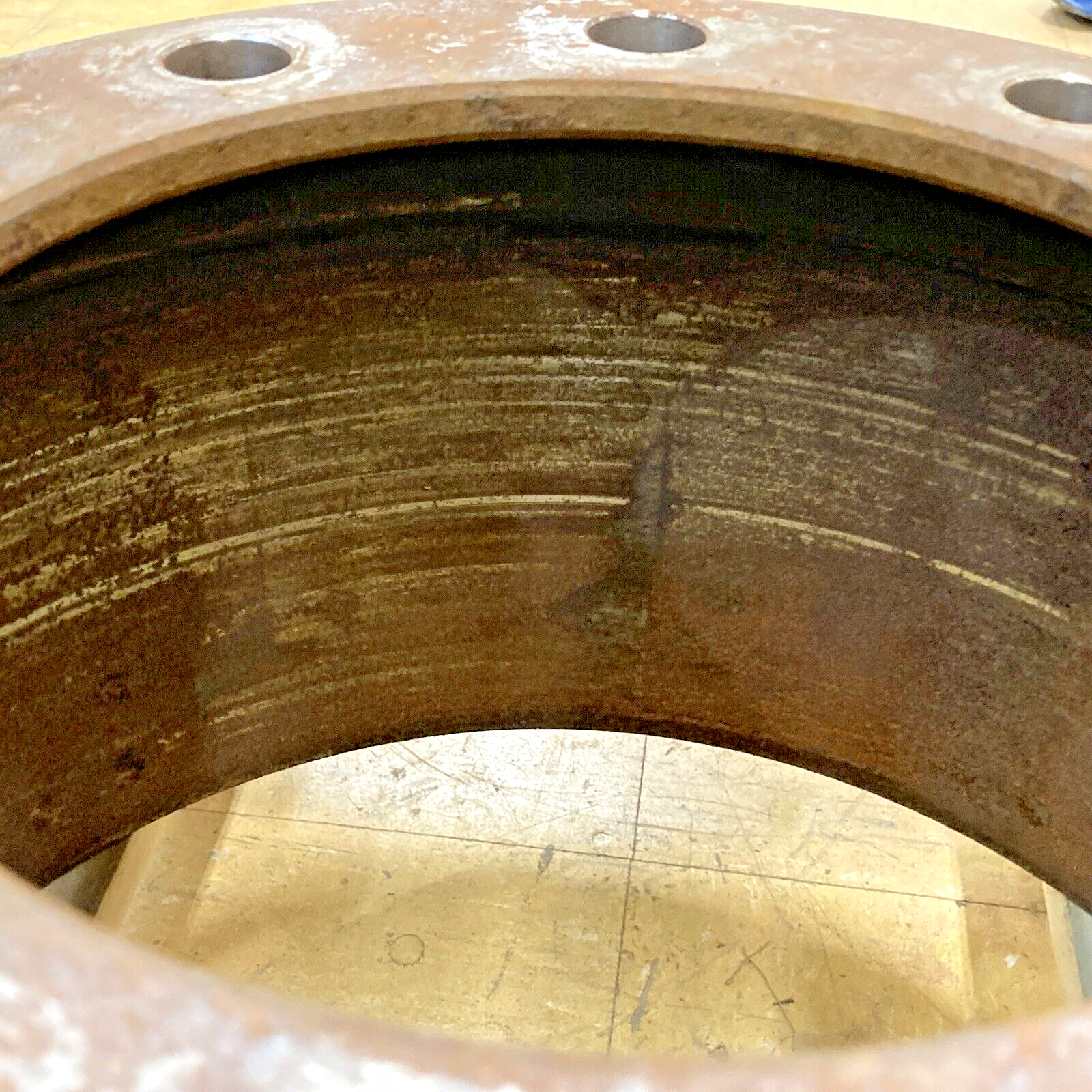

Item is used in great condition. Some surface rust see photos.

•

• A.Brake Surface Diameter: 16.50
• B.Brake Surface Width: 7.56
• C.Bolt Circle Diameter: 11.25
• D.Bolt Hole Size: 1.00
• E.Pilot Diameter: 8.78
• F.Overall Depth: 10.56
• G.Mounting Flange Thickness: 0.48
• Aftermarket Replacement:
• Axle Rating/GAWR:
• Brake Size: 16.50 x 7.00
• Captive To:
• Drum Mount: Outboard
• Finished Weight: 102.00
• Limitations:
• Maximum Wear Diameter: 16.62
• Measurement: Imperial
• Number of Bolt Holes: 10
• OE Service Replacement:
• Wheel Type: Disc
• Special Information: BAL

Only selling what is shown in photos.

No other accessories are included.

Please make sure parts will fit prior to purchasing.
