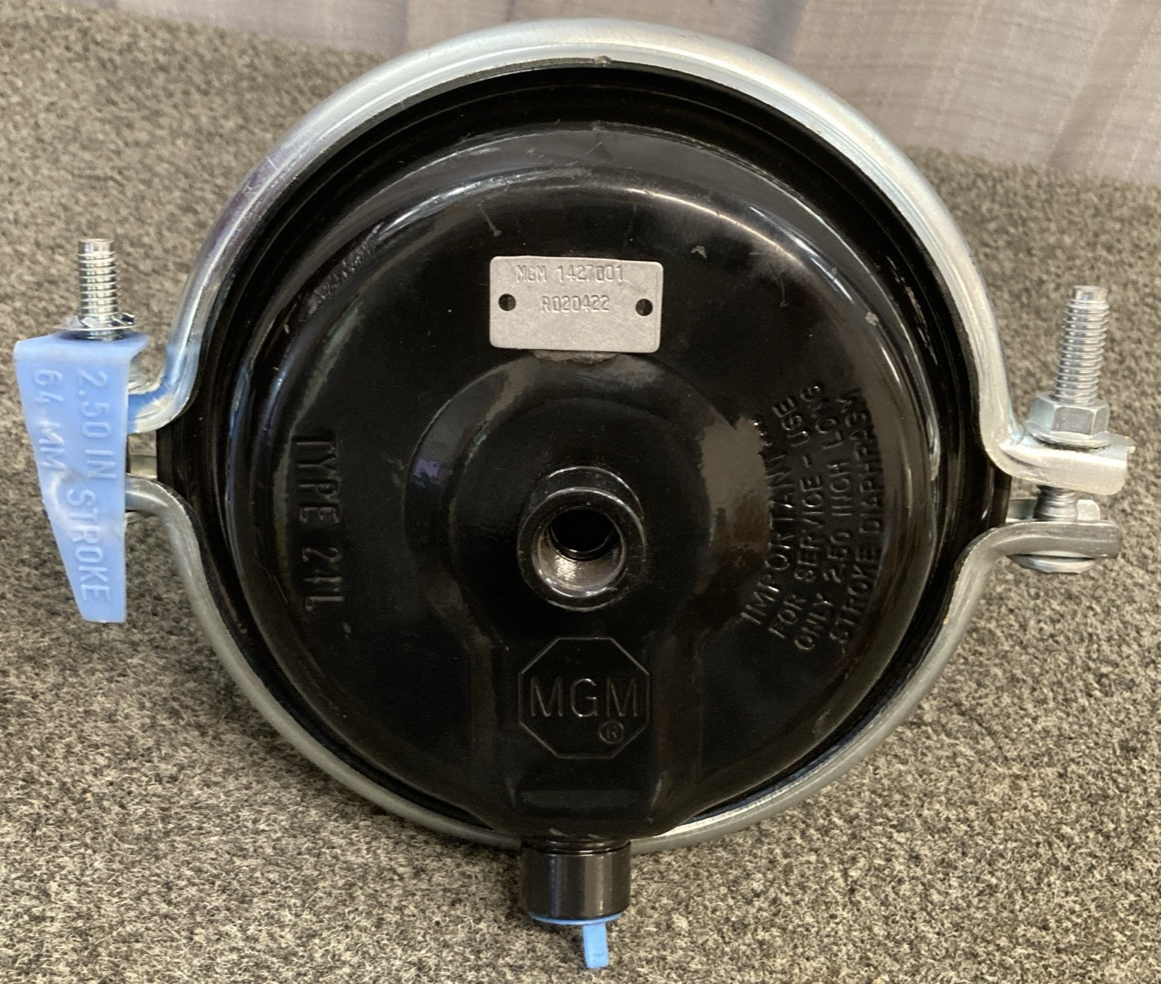

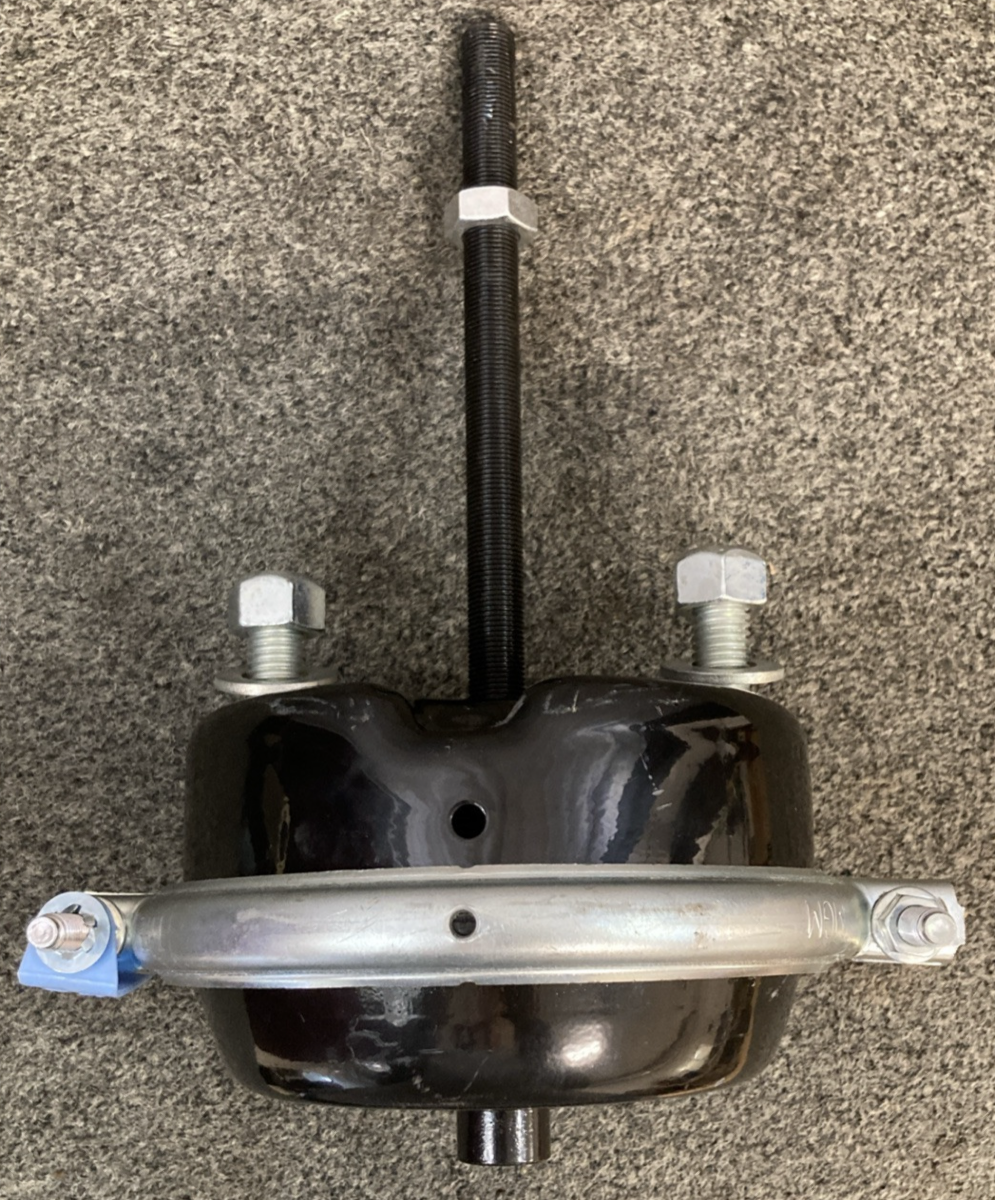

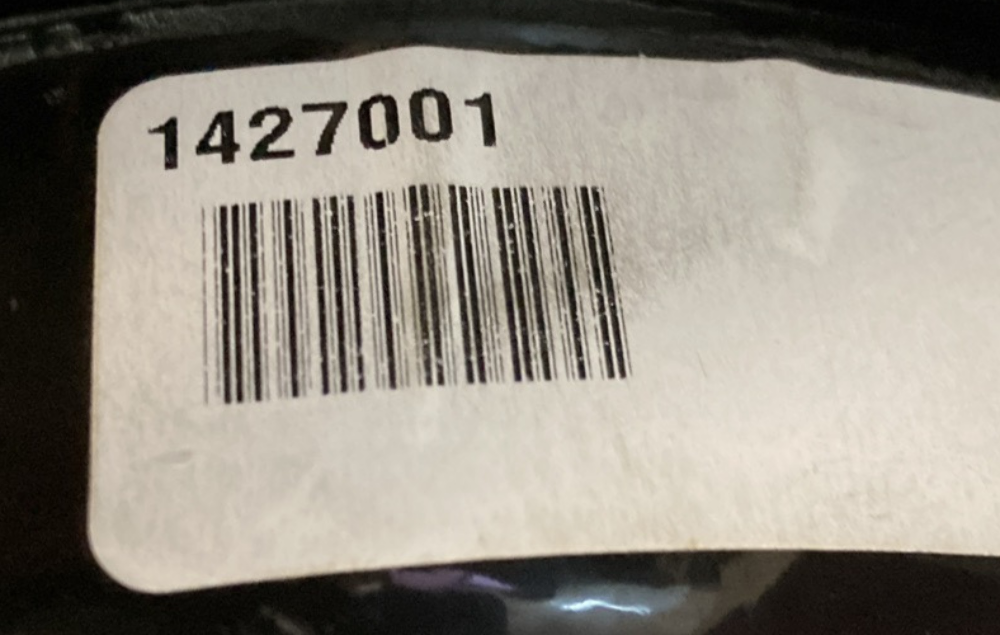

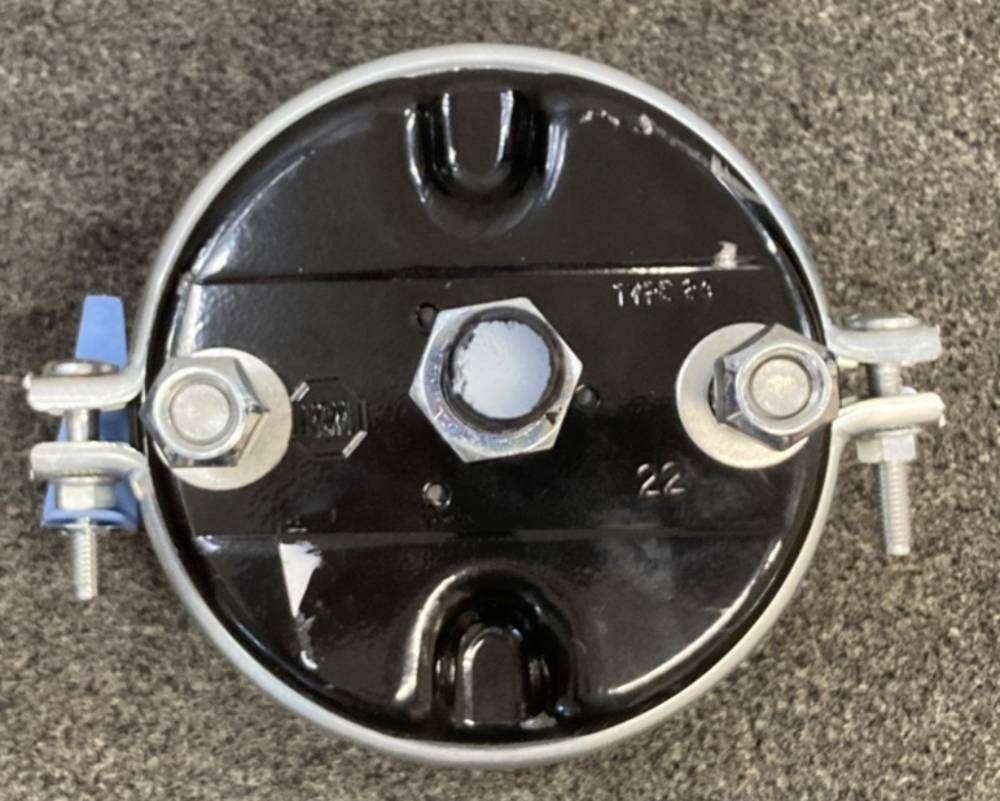

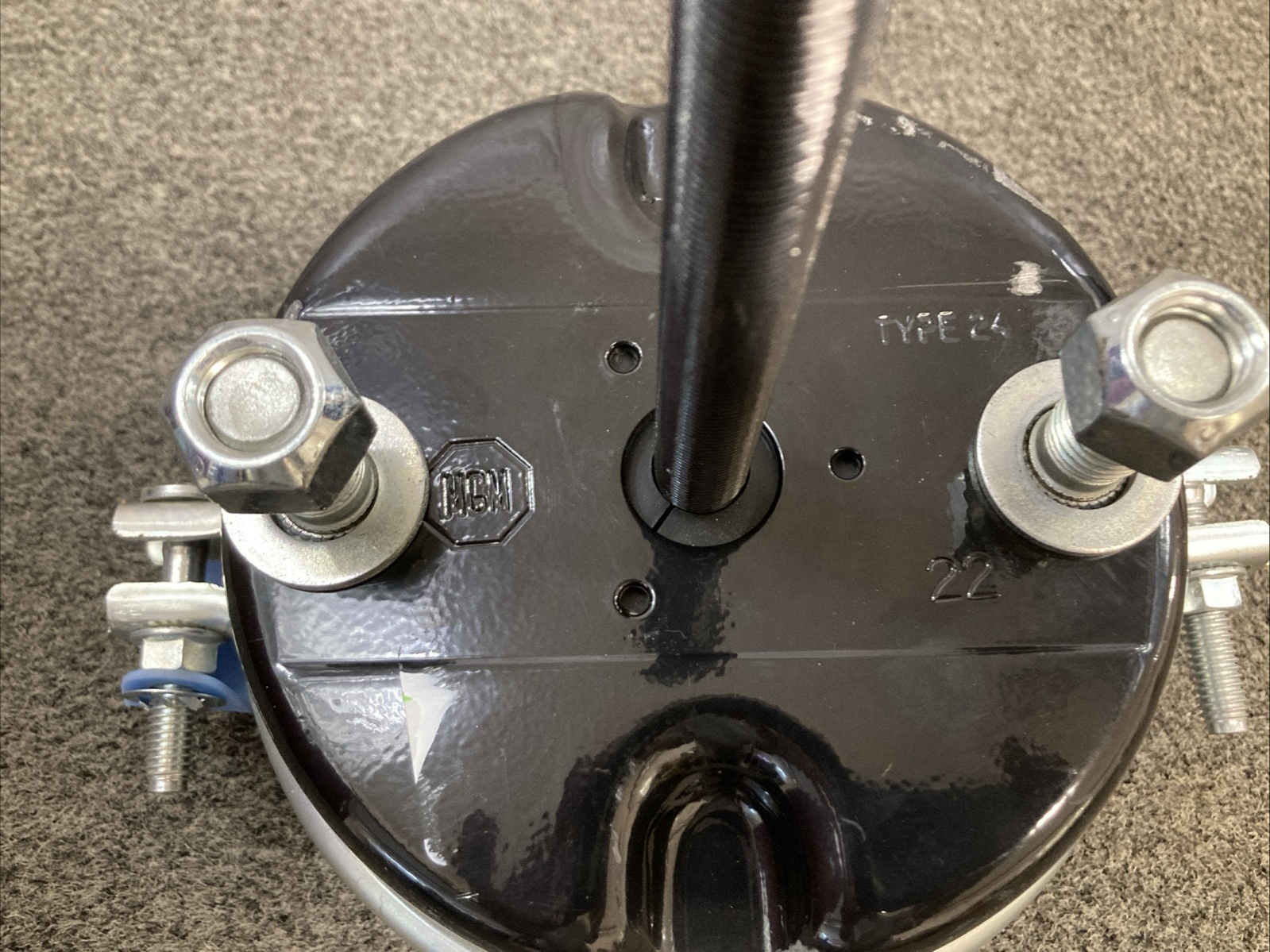

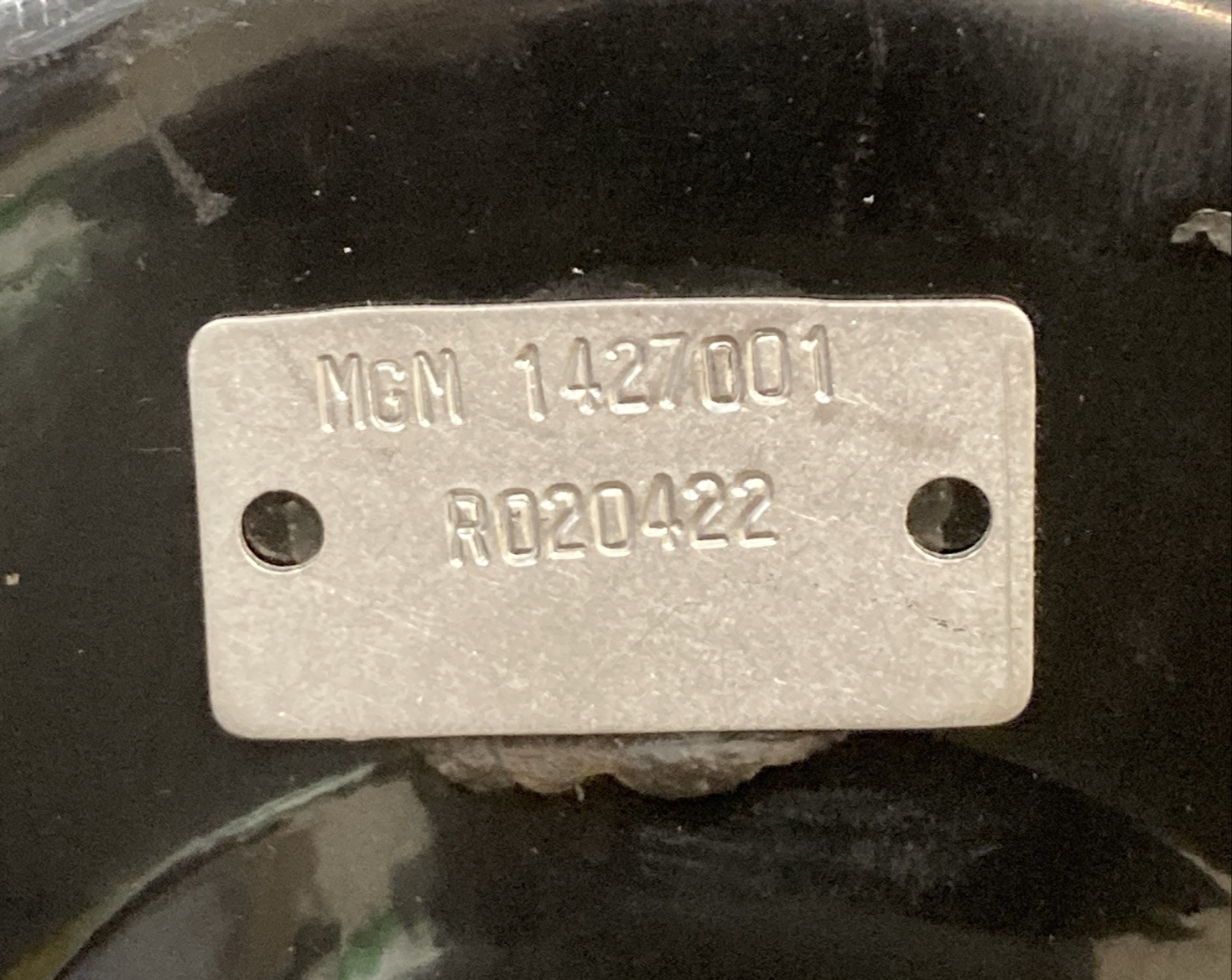

NEW GENUINE MGM 1427001 Service Chamber Brake 1427 Series 2.50" Stroke Size 24
- REPLACES P/N:
- NABI 5012585
- NAVISTAR FLTS24S18
- MERITOR V903276X24
- MERITOR W85-3276X24
- MERITOR W66-3276X24
- MERITOR X93276X24
- MERITOR D143276X24
- MERITOR X103276X24
- MERITOR X143276X24
- MERITOR V753276X24
- MERITOR D13-3276X24
- MERITOR V763276X24
- MERITOR W583276X24
- MERITOR W603276X24
- MERITOR W653276X24
- MERITOR W713276X24
- MERITOR V993276X24
- MERITOR W793276X24
- MERITOR W833276X24
- MERITOR D113276X24
- MERITOR D123276X24
- MERITOR X53276X24
- MERITOR X73276X24
- MERITOR X83276X24
- Replacement Parts
- Kit -NP Chamber (b) 9015117
- Kit -Nuts & Bolts 9003001
- Clamp Band Assembly 8216025
- Diaphragm 8017141
- Kit -Push-Rod Assembly (b) SAE 9064002
- Kit -Push-Rod Assembly (b) METRIC 9064016
- Return Spring 8068002
- Kit -Center Hold Shield 9065002
- NP Chamber Assembly (b) 8215105
- Kit -Nuts &Washers SAE 9002001
- Kit -Nuts & Washers MERTIC 9002002
- Hex Nut -Yoke SAE 8130004
- Hex Nut -Yoke METRIC 8130016
- Pressure Cap (2-inlet/steel) 8210002
Item is new not in original packaging.

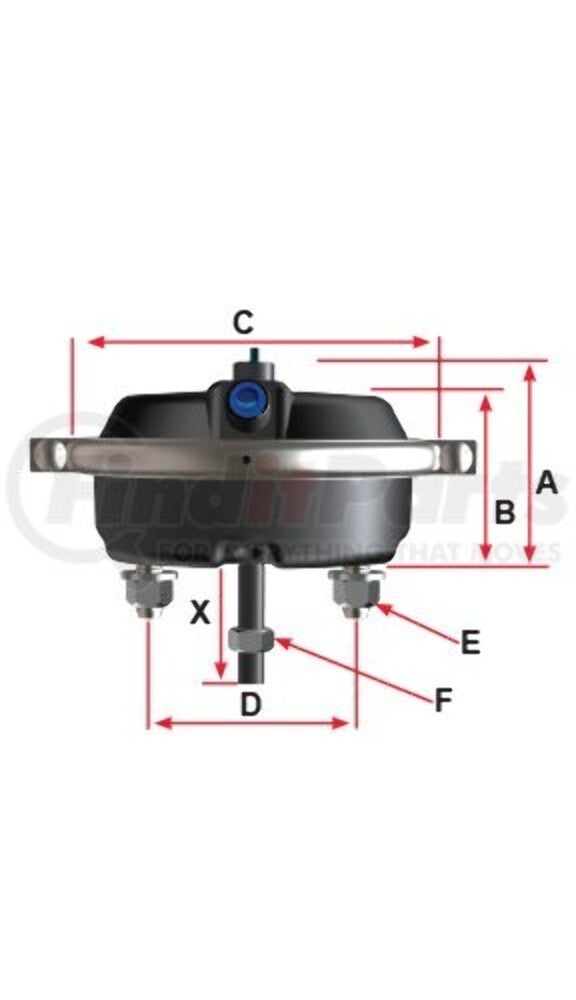

- SPECIFICATIONS:

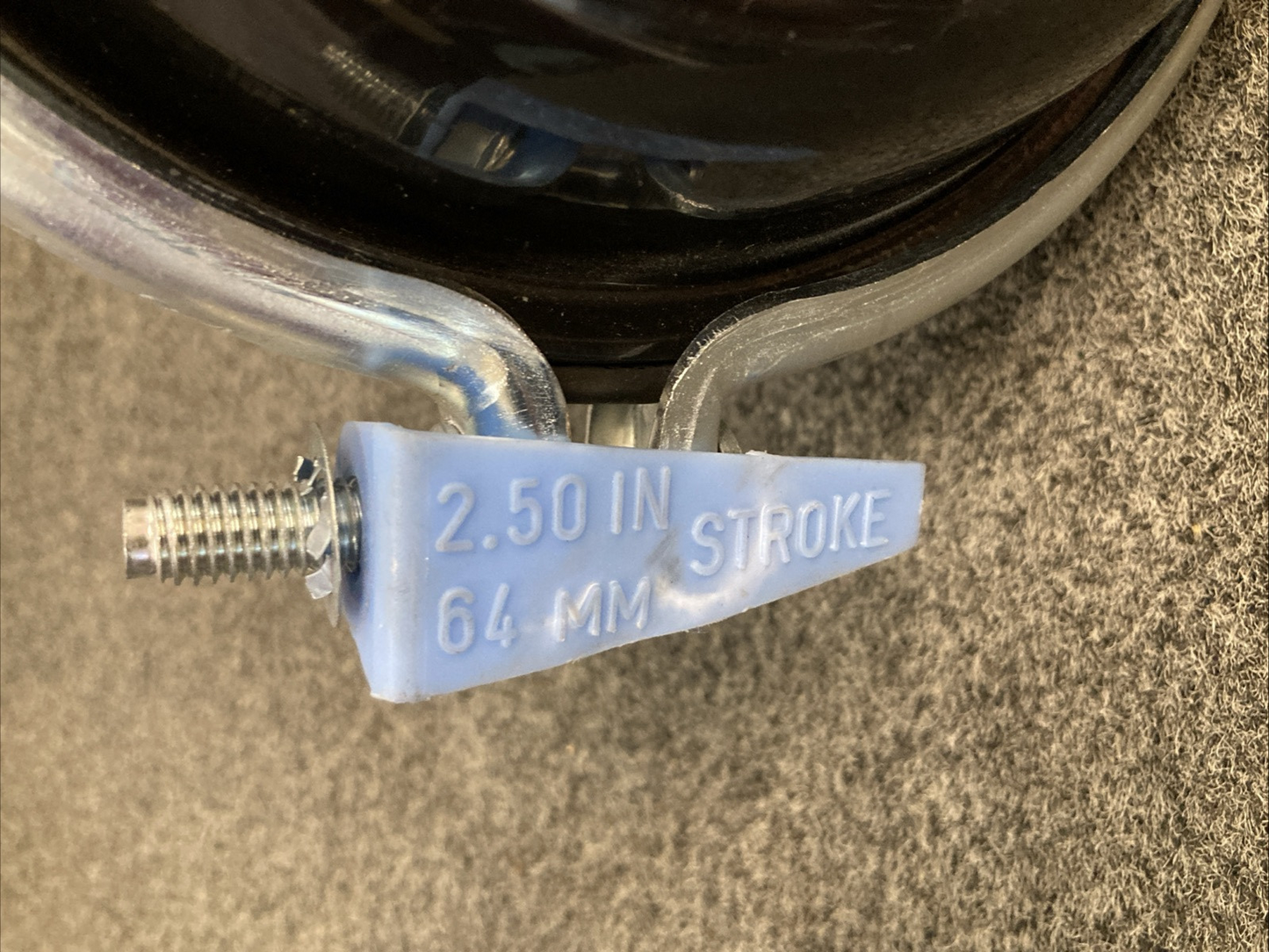

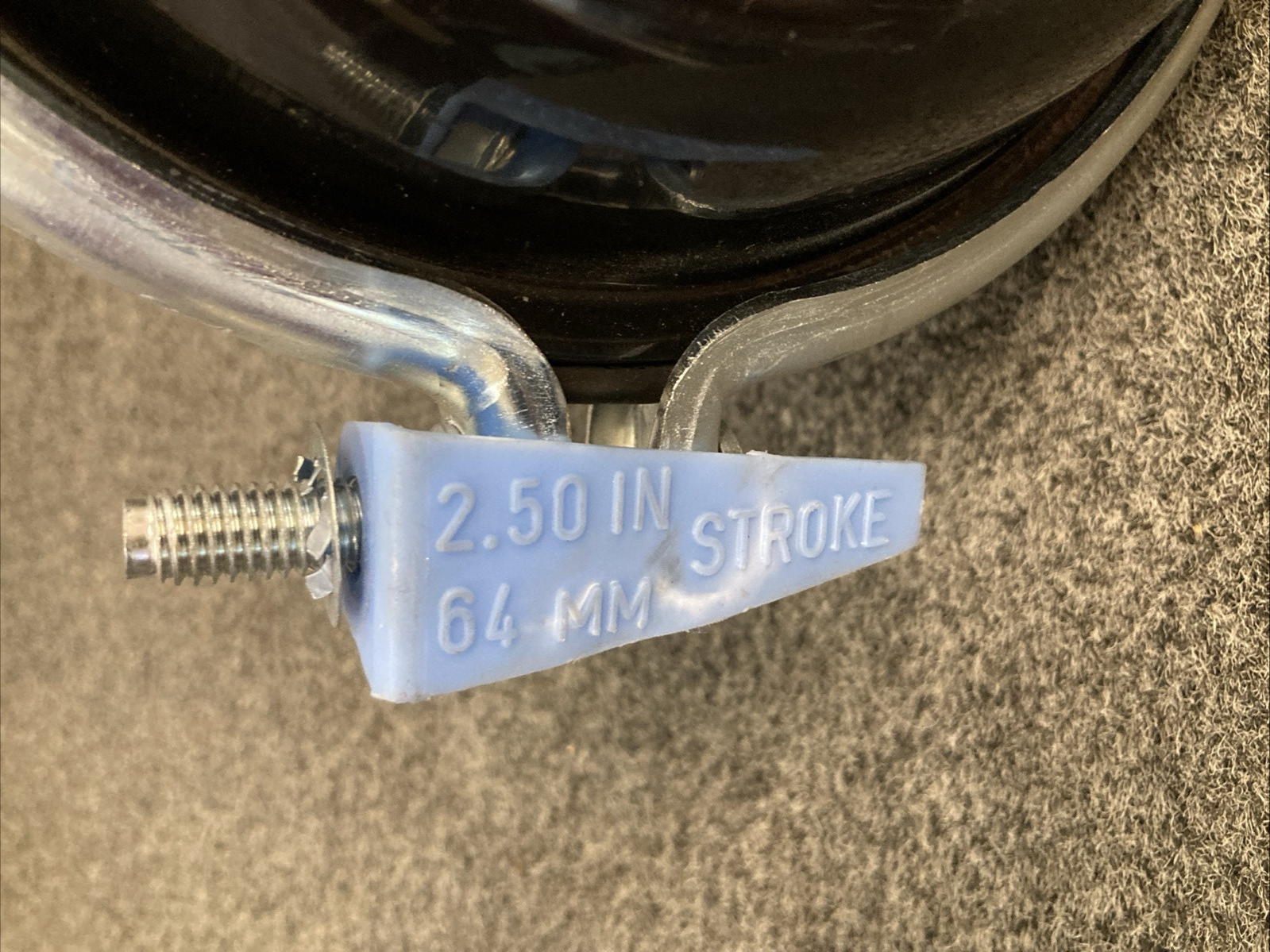

- Stroke 2.50" (63.5 mm)
- Weight lb (kg) 9.00 lb (4.1 kg)
- A 4.42" (112.3 mm)
- B 3.67" (93.2 mm)
- C 7.34" (186.4 mm)
- D 4.75" (120.7 mm)
- E 5/8" - 11 UNC
- F 5/8" - 18 UNF

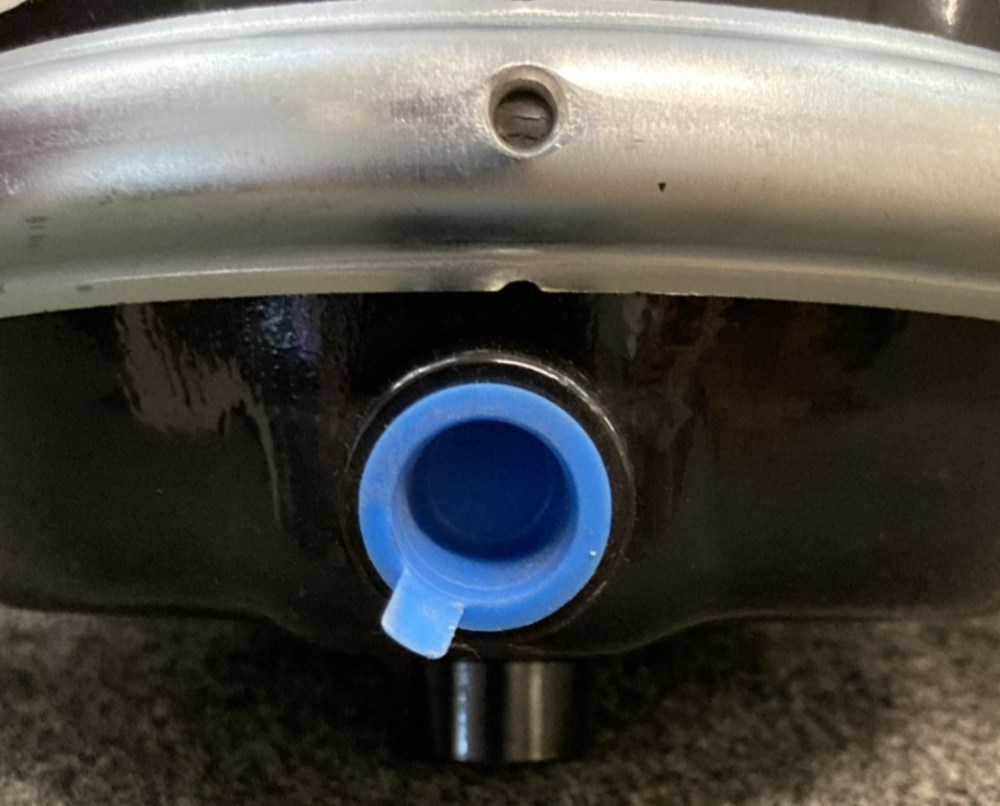

- Inlets 3/8" - 18 NPTF
Item only comes with what is in the photos.
