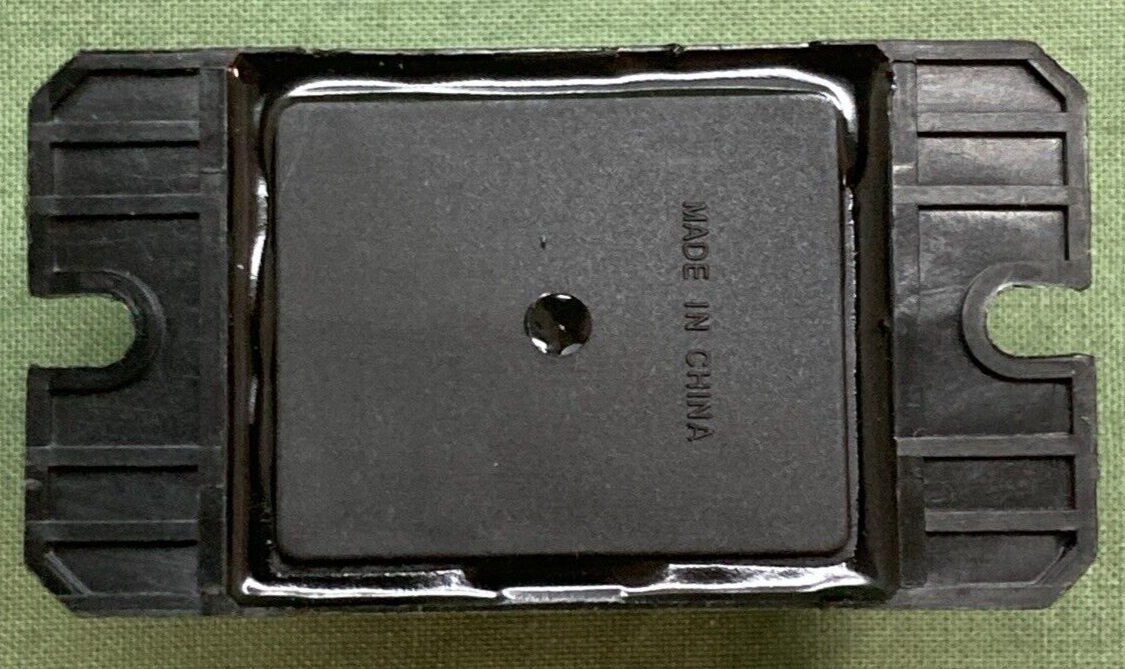

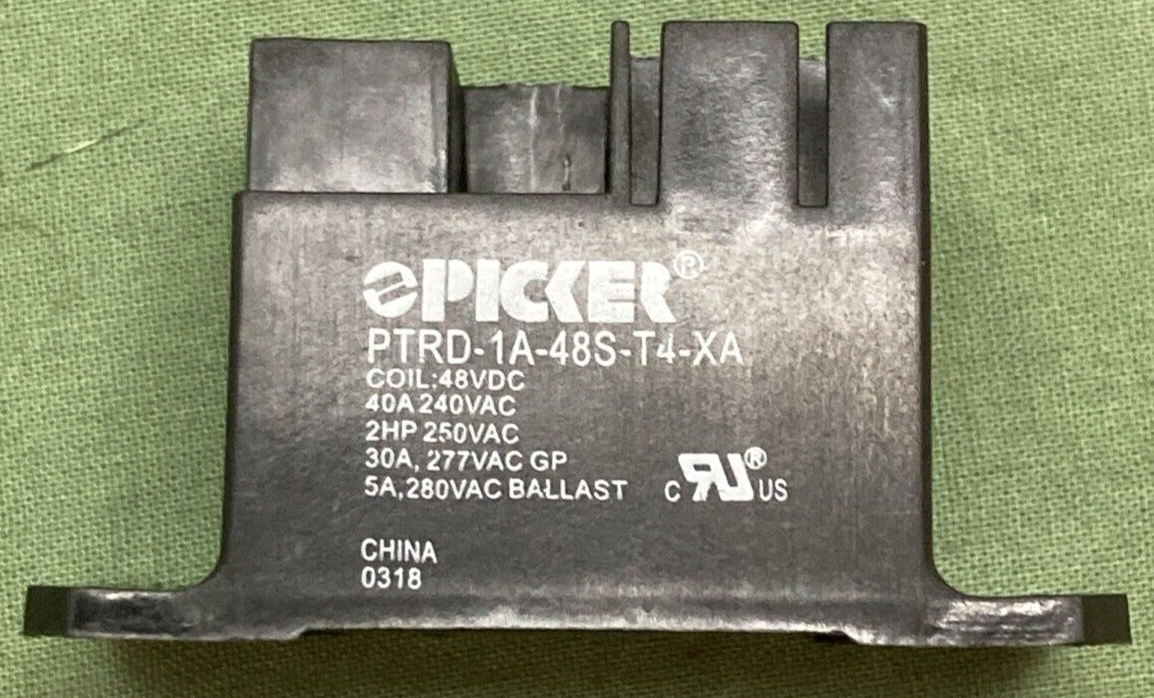

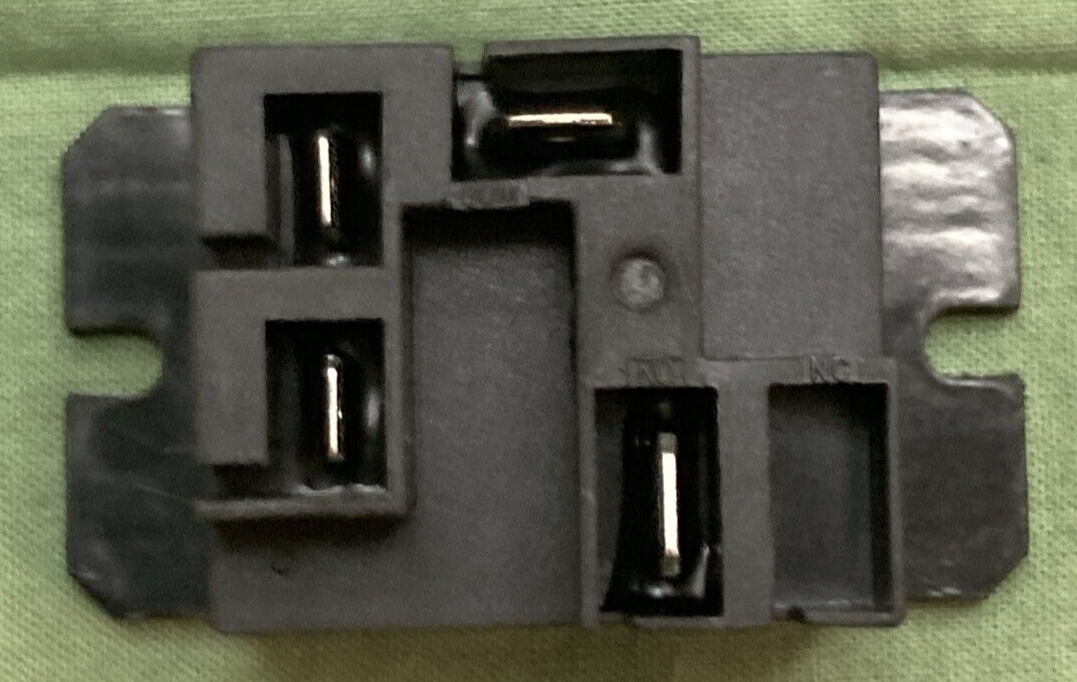

NEW GENUINE PICKER PTRD-1A-48S-T4-XA RELAY GENERAL PURPOSE SPST 40A 24V CHASSIS
NEW GENUINE PICKER PTRD-1A-48S-T4-XA RELAY GENERAL PURPOSE SPST 40A 24V CHASSIS
Regular price
$703.93 USD
Regular price
Sale price
$703.93 USD
Quantity
Couldn't load pickup availability
NEW GENUINE PICKER PTRD-1A-48S-T4-XA RELAY GENERAL PURPOSE SPST 40A 24V CHASSIS
- FEATURES:
- Mounting Type Chassis Mount
- Coil Voltage 24VDC
- Contact Form SPST-NO (1 Form A)
- Contact Rating (Current) 40 A
- Switching Voltage 300VAC, 110VDC - Max
- Load - Max Switching 12000VA, 4400W
- Coil Current 37.5 mA
- Coil Type Non Latching
- Termination Style Quick Connect - 0.187"/0.250"
- Seal Rating Sealed - Fully
- Coil Insulation Class F
- Must Operate Voltage 18 VDC
- Must Release Voltage 2.4 VDC
- Operate Time 15 ms
- Release Time 10 ms
- Operating Temperature -55°C ~ 100°C
- Contact Material Silver Cadmium Oxide (AgCdO)
- Approval Agency CUL, cURus, UL
- Relay Type General Purpose
- Coil Resistance 640 Ohms
- ENVIRONMENTAL CLASSIFICATIONS
- RoHS Status ROHS3 Compliant
- Moisture Sensitivity Level (MSL) 1 (Unlimited)
- REACH Status REACH Unaffected
- ECCN EAR99
- HTSUS 8536.41.0050
Item is new not in original packaging.
Item only comes with what is in the photos.
Some photos may be stock.
Please be sure that this item fits before purchase.
Occasionally photos show multiple units in a package, however, quantity is always one, (1), per order unless specifically stated otherwise in the title or description. If items come from the factory with multiple units per package and we are selling one per order, you may not receive the original packaging.
